Key Points

Shock delivered without spring.

The best downhillers in the world need it.

The toughest trails demand it.

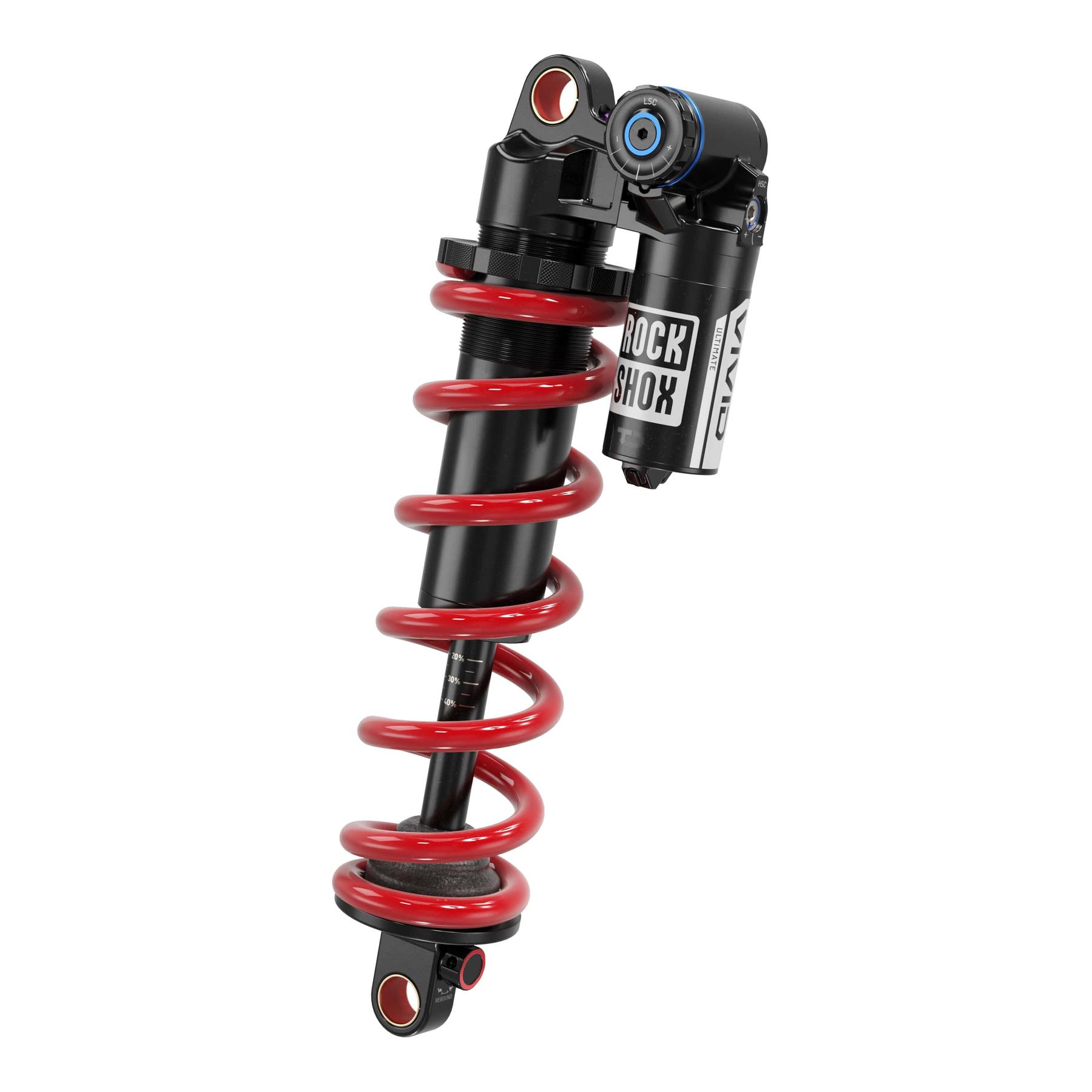

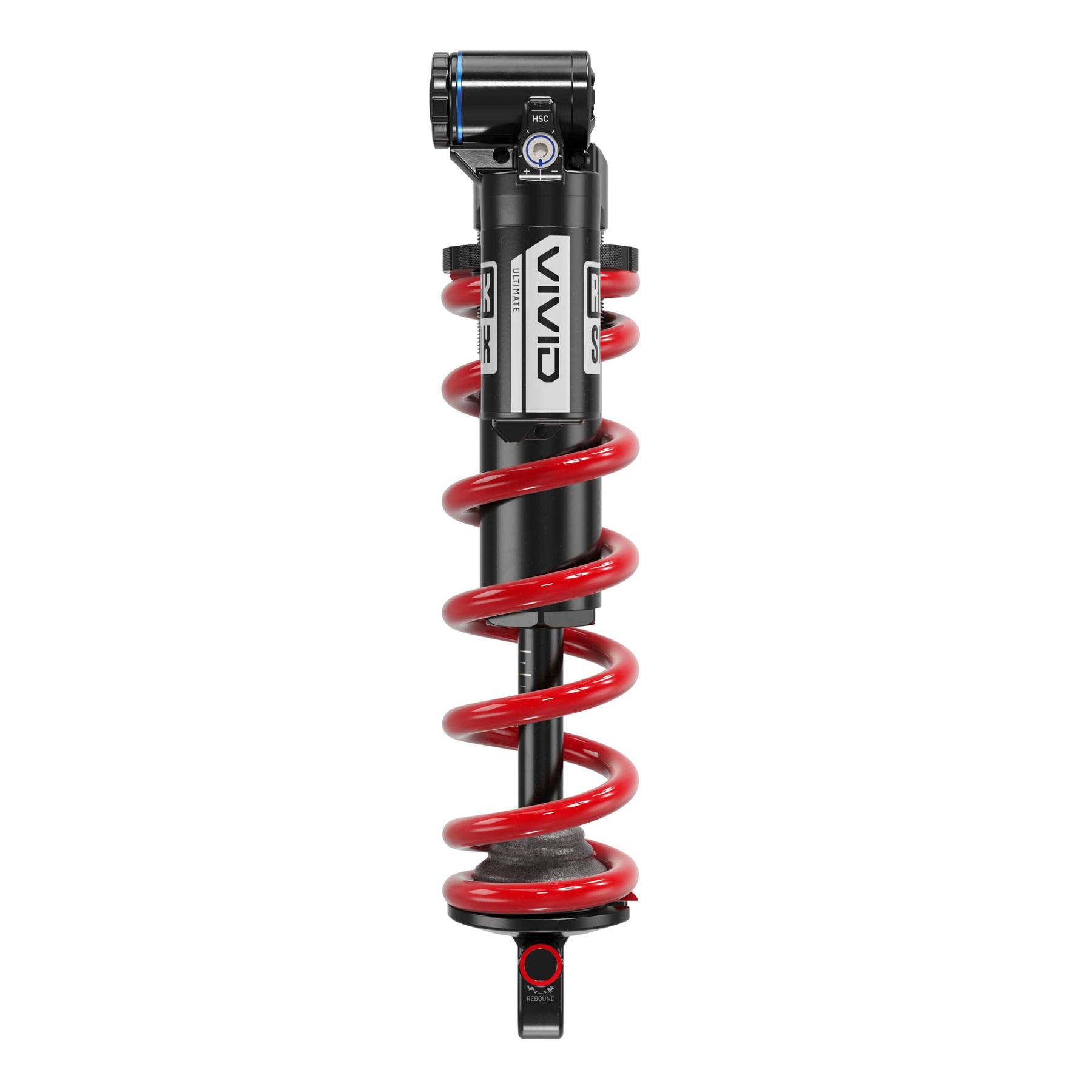

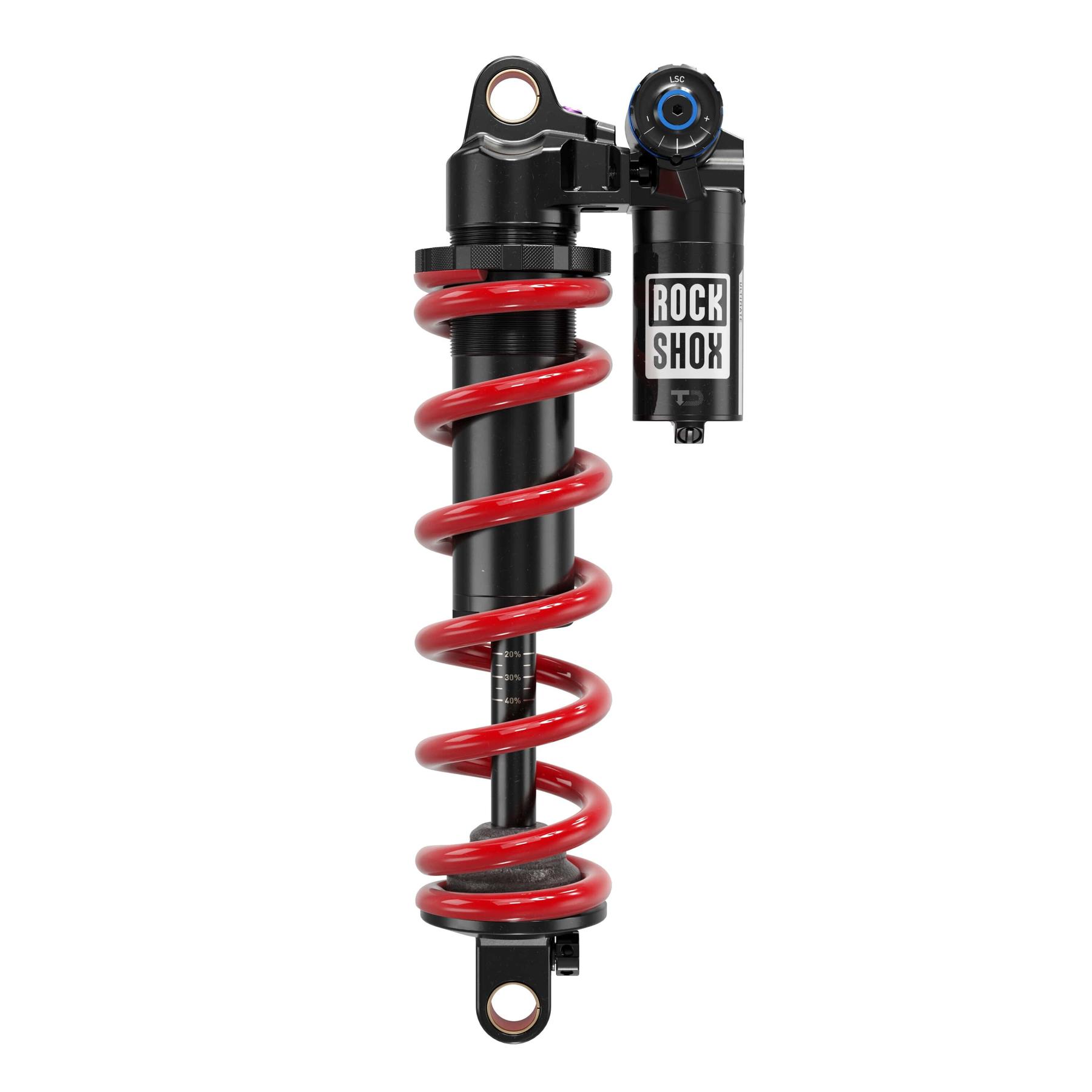

The Vivid Coil Ultimate is unmatched in terms of downhill performance and tuning capabilities.

Easily adjust the ideal feel using the dynamic-response TouchDown RC2T cartridge.

Independent external adjustments for high and low-speed compression provide amazing sensitivity at the beginning of the stroke, exceptional support and control in the middle part, and adjustable hydraulic bottom-out management to cushion the harshest landings.

This characteristic feel of the coil spring is enhanced with cutting-edge technology to deliver world-class suspension performance.

FEATURES

The TouchDown RC2T cartridge offers optimal sensitivity and suppleness while remaining stable and firm throughout the stroke.

Thanks to additional features like adjustable hydraulic bottom-out management for absorbing significant impacts, this dynamic-response cartridge offers optimal reliability and exceptional tuning options, showing liveliness across the entire stroke.

NEW The TouchDown RC2T cartridge includes rebound adjustment, independent high and low-speed compression adjustments, and an easy-to-adjust threshold lever for maximum pedalling efficiency.

The adjustable hydraulic bottom-out management provides five different compression settings that can be activated at your fingertips to customize the resistance rate for bottoming out over the last 20% of the stroke.

Compatible with the new Electric Red coil springs.

The soft bottom-out bumper adapts to different stroke lengths to utilize the full stroke.

Maxima Plush suspension oil reduces friction and unwanted noise from the cartridge.

The 20 clicks of rebound adjustment offer a wider adjustment range suitable for more types of riders.

The rebound knob is removable to reveal a 3mm hex key to adjust both high-speed compression and hydraulic bottom-out management.

Compatible with the 8x30 bearing adapter.

Technical specifications:

Body Mount: Standard
Shaft Mount: Standard
Lockout Force: X2
Rebound Adjustment: R55
Compression Adjustment: C30
Spacing: 210 mm
Stroke: 52.5000 mm
Damping Type: RC2T Adj. Hydraulic Bottom Out
Colour: Black
Discipline: MTB
Chamber Type: Coil
Check Tune: 0 - Light
Sticker Colour: Pearl White
Body Colour: Black
Damping Adjustments: Ext reb, 2pos (open/firm), HS&LS comp, Hydraulic Bottom Out
Spacing / Stroke: 210x52.5
Rebound adjustment clicks: 20
